BOTTOM VIEW
TOP VIEW
FRONT VIEW
E-fin EP18Li on SUP
EP18Li on SUP shot
NET WEIGHT : 0.88KG E-FIN MOTOR
ADAPTER (CONNECT FIN)
SCREW SET
SPARE PROPELLER
CHARGER
UNIVERSAL FIN BOX ADAPTER
US FIN BOX ADAPTER

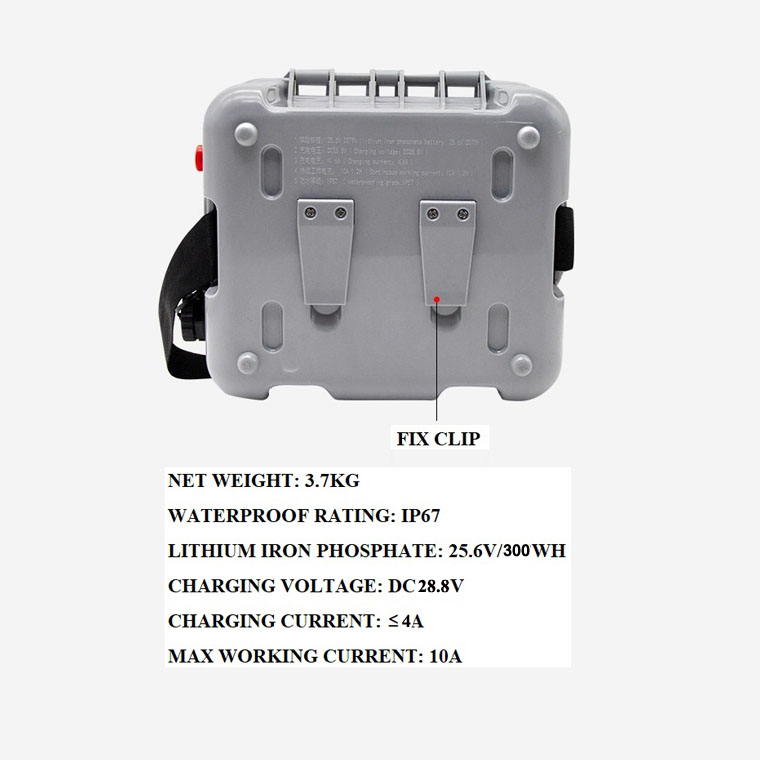

BATTERY BOX FOR EP18Li
Power :
160W
Max thrust :
18pound
Max speed :
8km/hr
Run time :
1.5-2hrs at full speed ( S shift )
4.5-5hrs at normal speed ( D shift )
Remote controller :
Unsinkable and water-proof
Drive, Sports and Reverse shifts
Max control distance :
5m
Max remote stand-by time :
3-5 years
E-fin carton size :
45×43.5×12cm
E-fin gross weight :
2kg
SPECS
SPECS
Charge time :
4hrs
Battery carton size :
23.5×19.5×16.5cm
Outside carton :
25×21×18.5cm
Li-ion battery :
Pls charge battery every 3-6 months
Unsinkable and water-proof
1000 cycles of charge and discharge
With emergency stop switch
Battery capacity :
300wh
Battery voltage :
25.6v
Continuous current :
Max.18a
Charger :
100-240v, 50/60hz
Charge voltage :
29.4v
Battery box gross weight :
3.95kg
Why do we SUP lovers need electric fin?
Cautions, Tips, and Tricks for Efin Usage
1. After using the efin in sea or salt water, always rinse and run it in fresh water immediately to prevent corrosion.
2. Charge the lithium battery every 3-6 months to 50-70% to maintain its health and longevity. A simple way is to charge the battery to the full and then play with it at S mode for half an hour.
3. Store the emergency switch and remote controller in the waterproof compartment of the battery, as each remote is paired with a specific battery box.
4. Secure the small black pin through the universal adapter until you hear a click to prevent the efin from being lost in the water.
5. Ensure the power cord is fully connected to the battery box until the connector self-locks to prevent water from entering the socket.
6. Keep the charging port dry and always put back the rubber cover after use.
7. Attach the red emergency switch cord to the foot leash to prevent the SUP from drifting away if you fall into the water.
8. Start the efin in areas with minimal weeds to avoid entanglement.
9. Use reverse mode to clear weeds or debris from the propeller.
10. Use reverse mode to change direction as desired.
11. Avoid underwater obstacles to prevent damage to the efin.
12. If lose the emergency switch, you can stick any magnet onto the interface to start the efin
13. If your old-sealed remote has no power, you may cut it & change the button-battery. Or better buy a new remote with replaceable Panasonic button battery.
14. You can always get help at whatsapp: +86 139 0515 5047
★ ★ ★ ★ ★
Conclusion: If you have Paddle Board, you got to have electric fin, you will have more fun then ever on water!
LEDONNE electric fin brought me so much fun on water, I wish I bought this years back! people around me are paddling like crazy, while I am sitting on my paddle board enjoy my drink!
Installation: Installation is easy, about 5 - 7 mins in general, hook up the fin, and secure the battery, that's all, start surfing!
Remote control: Remote control allows for adjustable speed. on this fin, it have regular, sports, and reverse option, of course, there is a stop motor botton too!
Battery life: battery lift supprisingly longer than I expect, I used the fin for 1 hour and 30 mins at full speed, and battery still holding good, that's very imoressive. if I can run the battery to die on one of my trip, I will update exactly how much time it will last.
An US customer
WHAT CUSTOMERS ARE SAYING ABOUT ELECTRIC FIN
★ ★ ★ ★ ★
Hi,I really enjoyed testing your eFin. It allowed me to paddle against the wind and against the tide with ease.
Unfortunately my brother lost one of the kill switch magnets while were paddling, so it's a good thing that you gave me 2 batteries.
An experienced product manager in Canada
★ ★ ★ ★ ★
"So, today was the day! I put eFin in the water and if I have to summarize the whole experience in one word:: EXCELLENT!!
Mounting it on , running the wires and the whole setup was very easy, piece of cake!!
I bought two 14Ah batteries that fits very well in the box, charge them up completely before use , went in the water with it and used about one hour of regular speed and about 10-15 min of Sport speed and the battery did not run out, as I wasn't expecting it to ..
If I don’t paddle at all the speed is about 5km/h on regular speed and close to 7km/h on Sport
But it works really well to use the regular speed as a booster to the paddling, I can get to about 8 km/ h in a comfortable rhythm, not exhausting myself."
Kayak customer in Canada
